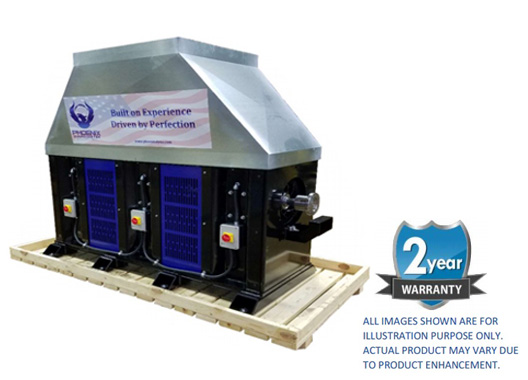

PDEC-1120
Description
Specifications
Accessories
Downloads
CAD
Quote
High Accuracy strain gauge loadcell for torque measurement
Precise control even at low loads and rapid changes in demands
Uni-directional operation
No water required for cooling
Precision shaft bearings ensure smooth operation
Virtually no maintenance
Powder coated frame and enclosure
Modular system
Vibration isolation mounting feet
For brochures please visit the DOWNLOADS tab

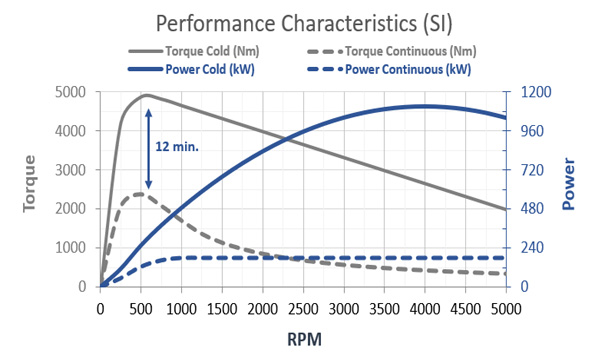

Power Cold/Continuous
1,120 kW [1,500 hp] / 172 kW [230 hp]
Torque Cold/Continuous
4,900 Nm [3,600 lb·ft] / 2,320 Nm [1,710 lb·ft]
Speed
5,000 rpm
Inertia Value
5.92 kg·m
2
[140.48 lb·ft
2
]
Shipping Weight
1,200 kg [2,640 lbs]
Rotation
Unidirectional (Selectable)
Power Req.
192 VDC 40A
A-A Charged Air Cooling
Adapter Plate Kit
Adjustable Dyno Lift
Advanced Calibration Kit
Air Starter
Air Storage Tank
Automatic Day Tank
Base Kit
Blow-by Meter
Calibration Weight Kit
Companion Flanges
Cooling Column
Diesel Fuel Holding Tank
Digital Air/Fuel Ratio Meter
Direct Capture Exhaust System
Drive Shaft Guard
Drive Shaft SAE 1710
Dyno Plex (Water Treatment System)
E-Stop Kit
Electric Starter
Emission Analyzer
Engine Cart
Engine Interface Module
Flywheel Adapter Kit
Fuel Measuring Unit
Hand-Held Remote Terminal
Hose Interconnect Kit
Ignition Power Supply
Instrumentation Boom
LightSpeed Software
Load Control System
Mass Flow Meter
Medium-Volt Power Analyzer
Multi-Point Automatic Lubrication
Optical Tachometer
Optical Temperature
Pedestal Mount
Pressure Sensors
Smoke Meter
Sub-Base
Temperature Sensors
Test Cell Instrumentation Unit
Throttle Actuator
Throttle Control Servo Linear Actuator
Torque Transducer
Torsional Coupling
Un-interpted Power Source
Vibration Sensors
Water Monitoring System
Water Recirculation System
Weather Station
PDEC-1120 Brochure
